Our high-pressure water jet lateral horizontal drilling technology is classified as fifth-generation radial horizontal drilling technology. After more than thirty years of development, HPT has successfully overcome the barriers of technology advancement, bringing this technology to a mature and practical level.

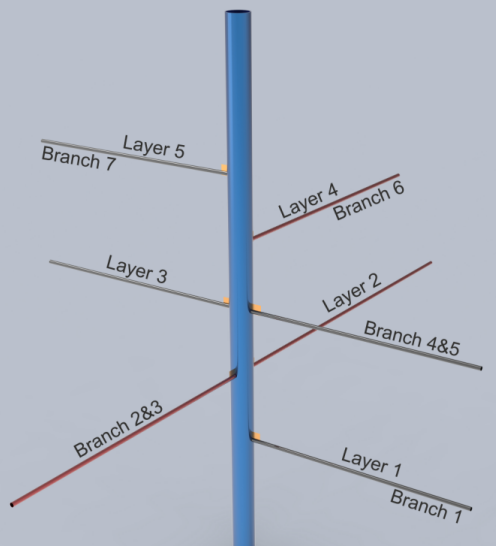

This method utilizes high-pressure water jetting to create lateral horizontal holes within existing wellbores. It allows for multiple operations to achieve several branching lateral horizontal holes.
Technical Advantages
Enhances oil production through lateral hole creation.
Increases exposed reservoir area and extraction pathways.
Connects natural fractures and untouched reservoir spaces.
Achieves cost-effective oil and gas output improvements.
Revolutionary method for aging oil field production.
Resumes operation of many abandoned wells.
Advantages Compared to Previous Technologies:
Cost saving due to simplified operations.
Include trajectory control technology.
Broadening the range of applicable scenarios.
Applications:
Applicable to most reservoirs, especially medium-hard sandstones and carbonates.
Suitable for all wells, including vertical, inclined, and horizontal wells.
Exploits untouched reservoirs, reducing extraction costs.
Precursor choice for fracturing.
Provides precise pathways for water, CO2, or steam injection.
Offers direct extraction pathways for thin oil layers or water-adjacent layers.
Allows micro-fracturing or sand control.
Applicable for production of coalbed methane, coal rock gas, and shale gas (proven excellent results in practice!)
Supporting hardware:
Downhole tool system(core)

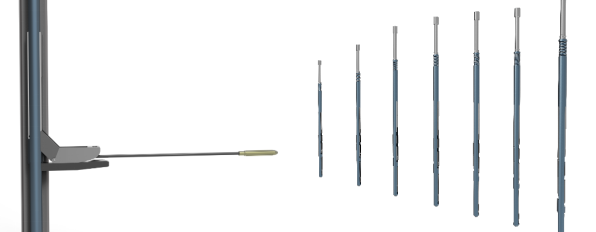

Hydraulic lateral horizontal drilling tools (steering tools, jetting tools).

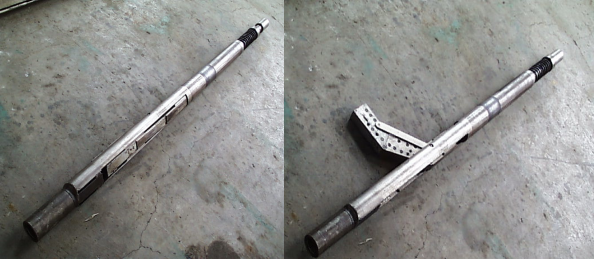

Downhole window-opening tools.
Auxiliary tools (bridge plugs, orientation tools).
Surface equipment
Multifunctional high-pressure fluid operation vehicle.
Coiled tubing truck.
Instrumentation vehicle.
During operations, the accompanying water tank truck, sand tank truck, high- and low-pressure pipelines, and circulation tanks are generally provided by the user.
| No. | Model | Applicable Casing | Max Pressure (MPa) | |
|---|---|---|---|---|
| 1 | YJHD5T | 5" | 105 | |
| 2 | YJHD51/2T | 51/2T" | 105 | |
| 3 | YJHD7T | 7" | 105 | |

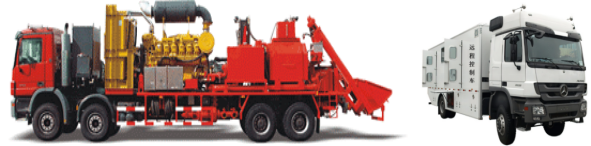

Multifunctional high-pressure fluid operation vehicle (MF-HPFOV)
MF-HPFOV combines the functions of a high-pressure pump truck and a sand mixing truck into a single unit.
Functions | Advantages |
· Sand delivery | · Compact |
· Mixing | · Lightweight |
· Agitating | · Operate remotely |
· Pumping |
Applications:
· High-pressure hydraulic jet multi-branch lateral drilling (designed for)
· Downhole hydraulic jet perforation
· Hydraulic fracturing
· Micro-fracturing
· Small-scale acidizing
· Sand control operations
· Pressure testing
Main parameters of MF-HPFOV
Model | Max Working Pressure MPa (psi） | Max Working displacement L/min (gpm) | Max Input Power of the Plunger pump kW (hp) | Liquid Additives Max Displacement kg/min (gpm） | Note |
YJHL100-447×2 | 99.7（14440） | 1872（496） | 892（1200） | 200（53） | Open a single window at once |
YJHL140-1340 | 140（20000） | 2309（610） | 1340（1800） | 200（53） | Open two single window at once |
YJHL105-1340 | 103.5（15000） | 2309（610） | 1340（1800） | 200（53） | |
YJHL140-1490 | 140（20000） | 2309（610） | 1490（2000） | 200（53） | |
YJHL105-1490 | 103.5（15000） | 2309（610） | 1490（2000） | 200（53） |
Note: This equipment can also facilitate the addition of dry powders.
Coiled tubing truck
Using a coiled tubing truck to deliver the jetting pipe for hydraulic jet drilling enhances operational efficiency and enables pressure-maintained operations, ensuring safety. Different coiled tubing sizes are recommended based on varying well depths, as shown in below table:
Coiled Tubing Specification in（mm） | Recommended Max Operation depth Ft (m) | Max Working Pressure Not Less Than Psi (MPa) |
1.25（31.75） | ≤11483(3500) | 15000 (103.4) |
1.5（38.1） | ≤19685(6000) | 15000 (103.4) |
1.75（44.45） | ≤19685(6000) | 15000 (103.4) |
